PVC Pipe Cutting Machine
PVC Pipe Cutting Unit / Planetary Cutter
Vital Force Engineering is a leading manufacturer, supplier and exporter of PVC Pipe Cutting Unit / Machine in Ahmedabad, Gujarat, India. It is also known as Planetary Cutter.

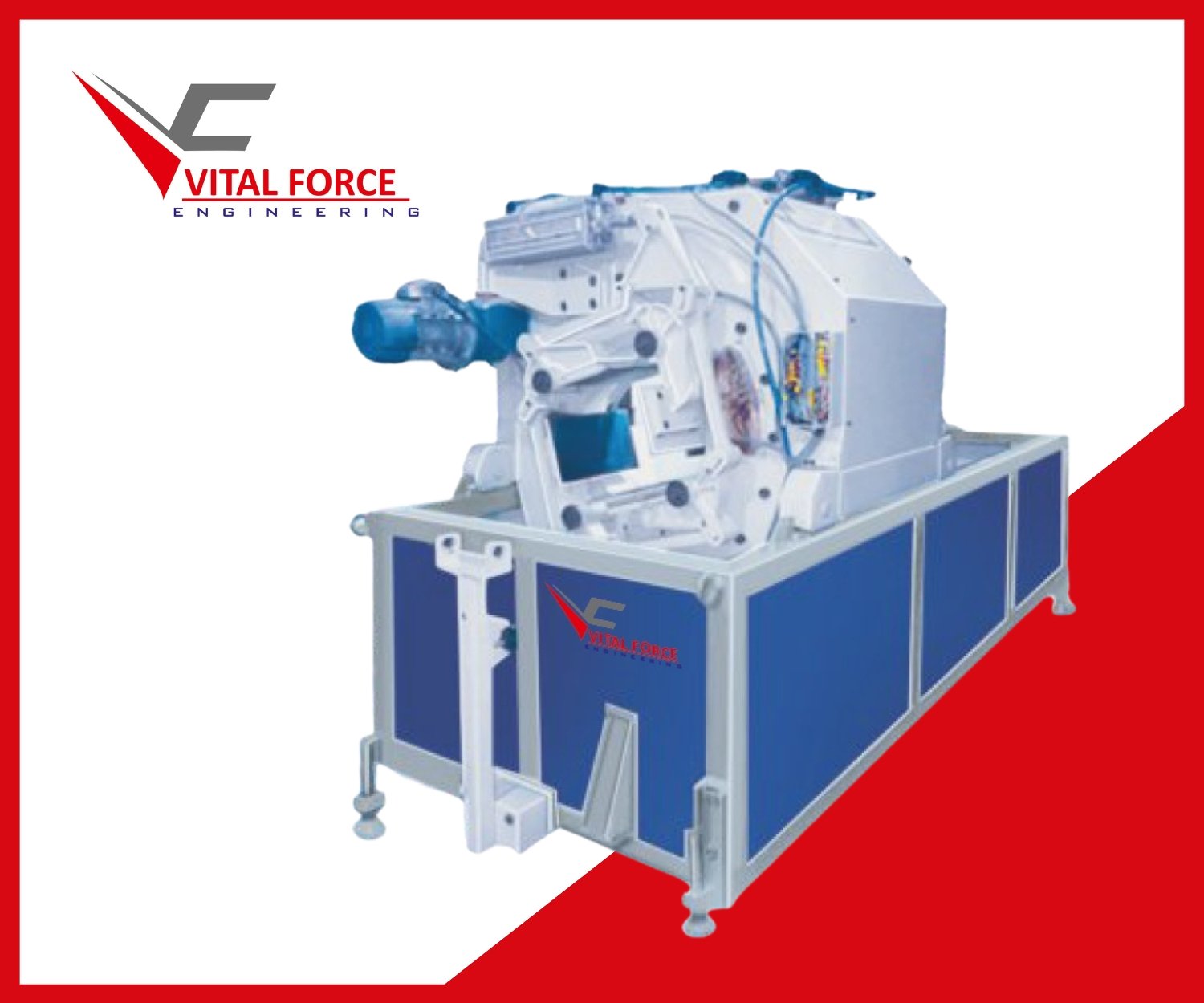

Planetary Cutting Unit (PCU)
- Preferred for pipe diameter range 50-400 mm
- Swarf removal executed by a suction blower
- Chamfering and Universal Clamping system available
- Mechanical actuator instead of hydraulic or pneumatic
- 4 and 6 Jaw universal clamping
- On line chamfering provided if needed
- Chamfering without replacable ring
- Direct Gear drive for rotating drum ยป Compact Swarf extraction system
- Power supply through slip ring - No moving cables
- Battery back-up for auto saw withdrawl
| Planetary Cutting Unit (PCU) | |||
|---|---|---|---|
|
Model |
Unit |
PCU 250 |
PCU 400 |
|
Pipe Range |
mm |
50-250 |
75-400 |
|
Cutting Speed (Max.) |
Mtrs/Min. |
10 |
7 |
|
Jaw For Clamping |
– |
4 |
6 |
|
Clamping From |
– |
– |
Universal |

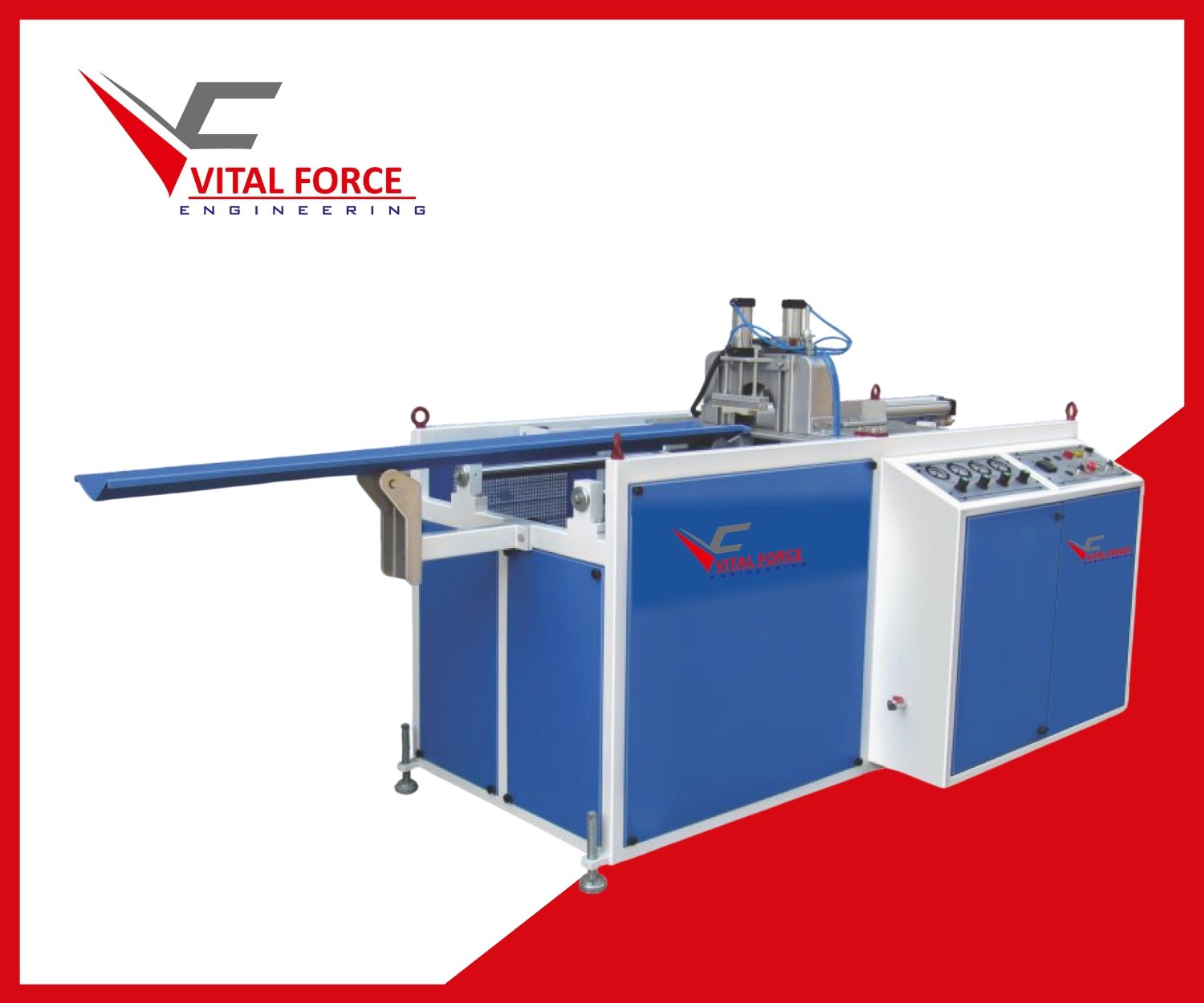

Tube Cutting Units (TCU)
- Carbide tipped rotating circular saw for longer life
- Pneumatically operated carriage movement
- Clamping force adjustable depending upon the wall-thickness of the pipe
- Swarf removal system optionally offered
| Tube Cutting Unit (TCU) | |||||||
|---|---|---|---|---|---|---|---|
|
Model |
Unit |
VCU 110 |
VCU 200 |
VCU 250 |
VCU 315 |
VCU 110/2 |
VCU 200/2 |
|
Pipe Range |
mm |
20-110 |
20-200 |
50-250 |
90-315 |
20-110 |
50-200 |
|
Cutting Speed (Max.) |
Mtrs/Min. |
15 |
10 |
10 |
6 |
12 |
15 |
|
Clamping From |
– |
Top |
Top |
Side |
Side |
Top |
Top |
